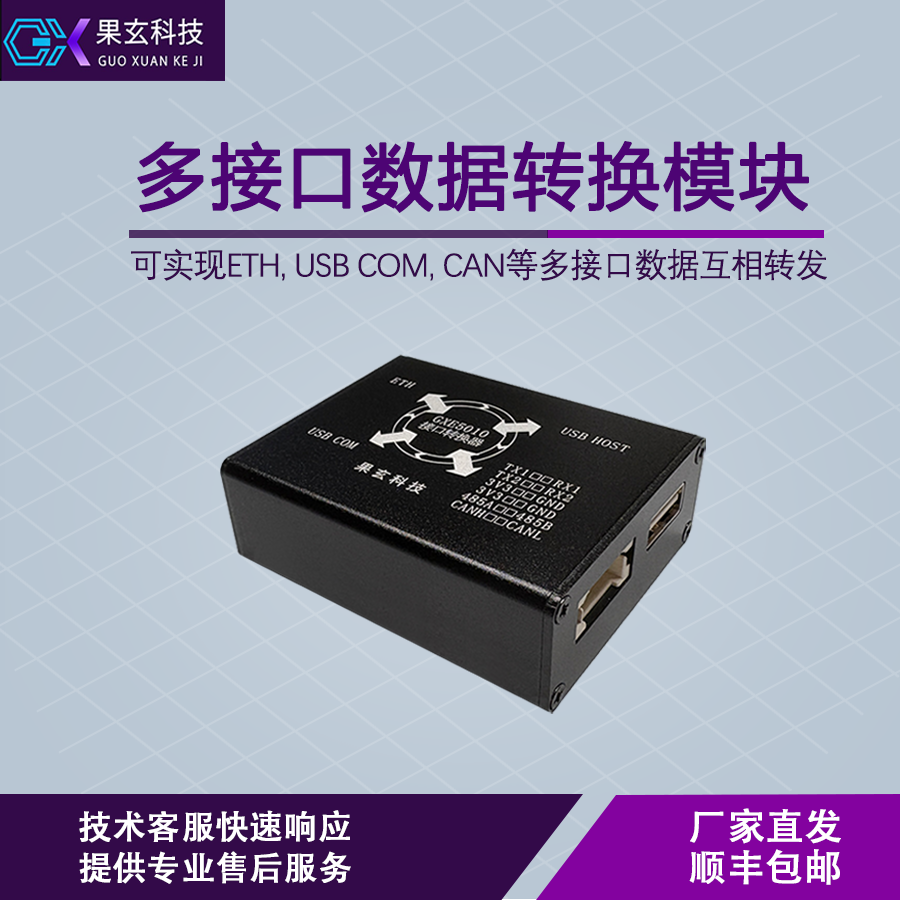

GXE5010 Multi-Interface Gateway for Sensor Calibration Systems

GXE5010 — Multi-Interface Gateway for Sensor Calibration Systems

Calibration Control Hub · ETH · USB · CAN 1 Mbps · RS485 · Robot Joint Bus Ready

The GXE5010 is a multi-interface gateway with bidirectional conversion between ETH, USB COM, USB HOST, UART, RS485 and CAN — serving as the control hub of TOPECH automatic sensor calibration systems. Over ETH/USB it commands GXR programmable resistors to simulate strain-gauge bridge outputs, while its CAN interface (up to 1 Mbps, the standard bus on robot joint modules) reads back digital-output joint torque sensors, enabling end-to-end consistency checks between simulated strain and the sensor's own CAN output in one automated flow — ideal for force/torque sensor makers serving humanoid robots and robot dogs. Configuration is managed via the USB COM (Type-C) command-line interface. The same hardware also enables remote control of programmable resistors over Ethernet in bridge and tunnel SHM systems.

Calibration Control Hub
Drives GXR Programmable Resistors
CAN 1 Mbps · Robot Joint Bus
ETH 10 Base-T
RS485 up to 10 Mbps
Compact 63×50×21mm
Send Inquiry

Product Specifications

ParameterSpecification
ModelGXE5010
Dimensions63 mm × 50 mm × 21 mm
ETH10 Base-T
USB COMUp to 2 Mbps (default 115200 bps), Type-C
USB HOSTUSB Full Speed, supports 1-level HUB
UART2× TTL serial ports
RS4851× RS485 interface, up to 10 Mbps
CAN1× CAN interface, up to 1 Mbps
Power SupplyVia USB COM port
Max Working Current100 mA

Why Buy From TOPECH

OEM / ODM Support

Custom interface configurations, firmware modifications and branding — backed by our in‑house R&D and manufacturing team.

Factory‑Direct Pricing

Buy straight from the manufacturer. Competitive wholesale pricing with tiered discounts for distributors and bulk orders.

Fast Global Shipping

Worldwide delivery via DHL / FedEx / UPS with export‑grade packaging. Sample units ship within 3–5 business days.

Lifetime Technical Support

Full documentation and remote engineering support for the entire product lifecycle — 12‑month warranty included.

Frequently Asked Questions

How is the GXE5010 used in robot sensor calibration systems?
As the control hub of an automatic calibration bench: over ETH/USB it drives GXR programmable resistors that simulate strain-gauge bridge outputs, and over CAN (up to 1 Mbps — the standard robot joint bus) it reads back digital-output joint torque sensors, enabling end-to-end consistency checks between simulated strain and the sensor's own CAN output in one automated flow.
Can the GXE5010 be used for remote calibration of bridge monitoring systems?
Yes. Connected to GXR series programmable resistors via USB HOST, it delivers control and calibration commands over Ethernet — allowing engineers to remotely calibrate vibration sensors in bridge and tunnel SHM systems without being on site.
What is the minimum order quantity (MOQ) for the GXE5010?
No strict MOQ for standard GXE5010 modules — sample orders welcome. Tiered wholesale pricing is available for distributors and bulk orders.
Does TOPECH support OEM/ODM customization of the GXE5010?
Yes. Custom interface configurations, firmware modifications, branded labeling and assembly-line integration support are available for OEM and ODM projects.
Can I get a GXE5010 sample before placing a bulk order?
Yes, evaluation samples ship within 3–5 business days with documentation and remote technical support during testing.
What is the lead time and how do you ship worldwide?
Standard lead time is 1–3 weeks. Worldwide shipping via DHL, FedEx, UPS and air/sea freight with export packaging.
What warranty does the GXE5010 include?
12‑month warranty plus lifetime technical support including remote assistance from our Chengdu engineering team.

Building an Automatic Sensor Calibration Line?

TOPECH provides the GXE5010 gateway paired with GXR programmable resistors and GXA 32-bit DAQ cards as a complete calibration system for robot force/torque sensor production — with Ethernet remote calibration also proven in bridge & tunnel vibration monitoring. Contact us for system integration support.
