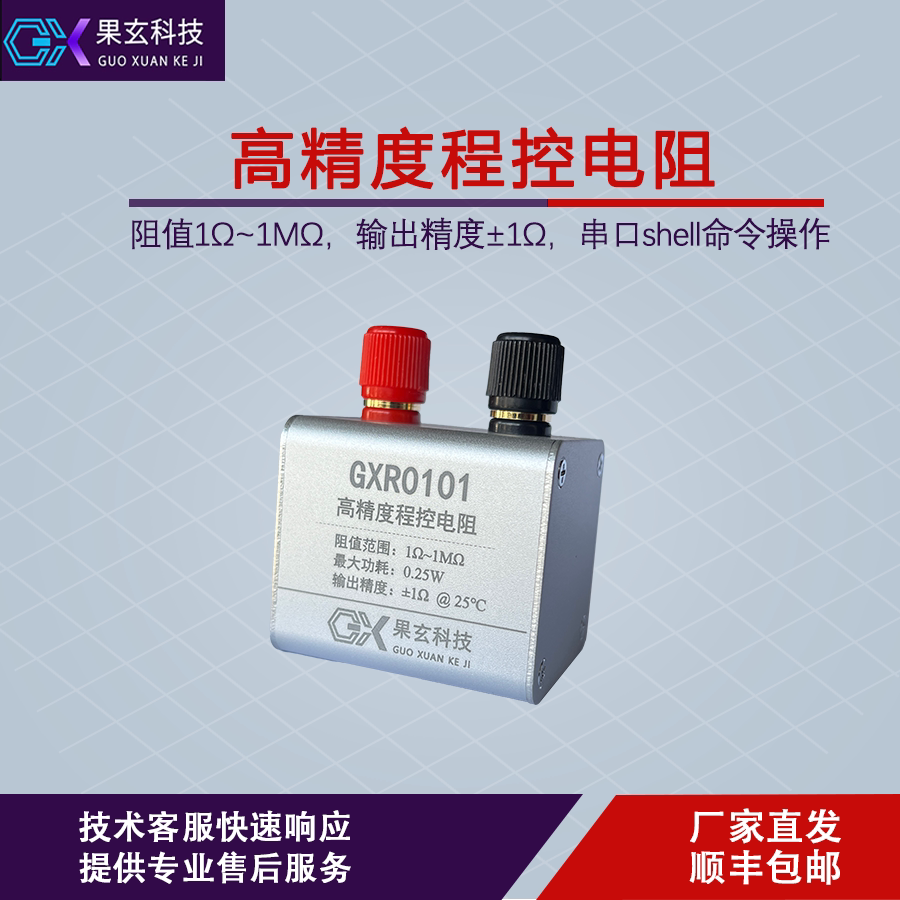

GXR0101 High-Precision Programmable Resistor Module

GXR0101 — Programmable Resistor 1Ω–1MΩ for Robot Sensor Calibration

Strain Gauge Simulator · 1Ω–1MΩ · ±1Ω Accuracy · Compact 47×42×42 mm

The GXR0101 is a compact high-precision programmable resistor that works as a strain-gauge bridge simulator for calibration and testing of force/torque sensors in robotics — 6-axis force sensors, joint torque sensors and 1-axis load sensors used in humanoid robots and robot dogs. With 1Ω–1MΩ range, ±1Ω accuracy (1Ω–1KΩ) and ±0.01% (1KΩ–1MΩ) at 25°C, it generates exact simulated bridge outputs for automated point-by-point calibration. Gold-plated 4mm banana connectors ensure low-contact-resistance hookup to sensor bridges; magnetic latching relays retain values after power loss. Command-line controlled via USB/ETH with the GXE5010 gateway. Also suited to vibration sensor calibration in bridge & tunnel SHM systems.

Robot Force/Torque Sensor Calibration
Strain Gauge / Bridge Simulator
1Ω – 1MΩ Range
±1Ω Accuracy
Power-Off Retention
Controlled via GXE5010
Send Inquiry

Product Specifications

ParameterSpecification
ModelGXR0101
Resistance Range1 Ω – 1 MΩ
Output Accuracy (1Ω–1KΩ)±1 Ω @ 25°C
Output Accuracy (1KΩ–1MΩ)±0.01% @ 25°C
Max Power0.25 W
Relay TypeMagnetic latching relay (power-off retention)
ConnectorsGold-plated 4mm banana jacks (pure copper)
Dimensions47 mm × 42 mm × 42 mm
Weight0.09 kg

Why Buy From TOPECH

OEM / ODM Support

Custom resistance ranges, control interfaces and branding — backed by our in‑house R&D and manufacturing team.

Factory‑Direct Pricing

Buy straight from the manufacturer. Competitive wholesale pricing with tiered discounts for distributors and bulk orders.

Fast Global Shipping

Worldwide delivery via DHL / FedEx / UPS with export‑grade packaging. Sample units ship within 3–5 business days.

Lifetime Technical Support

Full documentation and remote engineering support for the entire product lifecycle — 12‑month warranty included.

Frequently Asked Questions

How is the GXR0101 used in robot sensor calibration?
Force and torque sensors for robots and robot dogs are strain-gauge-based Wheatstone bridges. The GXR0101 replaces a bridge arm to output precise simulated strain values for point-by-point calibration and incoming/final inspection. ±1Ω accuracy (1Ω–1KΩ) and ±0.01% (1KΩ–1MΩ) cover typical 120Ω/350Ω gauge bridges, and the compact 47×42×42 mm size fits production fixtures.
What is the minimum order quantity (MOQ) for the GXR0101?
No strict MOQ for standard GXR0101 units — sample orders welcome. Tiered wholesale pricing is available for distributors and bulk orders.
Does TOPECH support OEM/ODM customization of the GXR0101?
Yes. Custom resistance ranges, control interfaces, branded labeling and enclosure options are available for OEM and ODM projects.
Can I get a GXR0101 sample before placing a bulk order?
Yes, evaluation samples ship within 3–5 business days with documentation and remote technical support during testing.
What is the lead time and how do you ship worldwide?
Standard lead time is 1–3 weeks. Worldwide shipping via DHL, FedEx, UPS and air/sea freight with export packaging.
What warranty does the GXR0101 include?
12‑month warranty plus lifetime technical support including remote assistance from our Chengdu engineering team.

Automate Your Sensor Calibration Line?

TOPECH supplies programmable resistor bridge simulators, 32-bit DAQ readback cards and CAN/ETH gateways as a complete automatic calibration solution for force/torque sensor makers and test labs — also proven in bridge & tunnel vibration monitoring. Contact us for system integration support and quotations.
